2.0” TFT LCD 240×320, Smart Touch Screen, ST7789V, SPI Interface

  • Wide Viewing Angle: IPS panel provides a wide viewing angle of 170 degrees. We can view the content from any direction.
  • Produce Clear Images: Firstly, the high resolution (240×320) provides detailed images. Secondly, the contrast ratio (800:1) offers deep blacks and bright whites for high-quality visuals.
  • Easy Integration: The MCU interface and ST7789V IC controller allow rapid development and debugging programs for engineers. Furthermore, an FPC cable connector can save space in small applications and enable easy integration.
  • Simplify Product Design: You can add a resistive or capacitive touch screen to simplify product design without additional buttons or separate input devices. You will see a seamless and clean product, and users will love this.
SKU: GFC320240V1-2.0INTM Categories: , ,

Free Sample available all time!

  • Accept Custom Display Solution
  • Offer 12 Months Warranty
  • ISO 9001:2001 and RoHS Compliant for All Products

Description

This 2.0” TFT LCD is an IPS display Module with IPS panel / Active-Matrix TFTs / Resolution of 240×320 / Contrast ratio of 800:1  / Optional Touchscreen / SPI, RGB, MCU Interface / ST7789V Controller IC / FPC connector.

The high quality, low price product is always our long-term goal.



Technical Details

Download Product References Below
Product Datasheet: GFC320240V1-2.0INTM
Driver Datasheet:  ST7789V



Model / Series Name GFC320240V1-2.0INTM
Diagonal Dimension (Inches) 2.0
Dots WxH 240 x 320
Module Size WxHxD (mm) 34.70 x 47.95 x 2.20
LCD Active Area WxHxD (mm) 30.60 x 40.80
Display Mode IPS / Transmissive
Viewing Angle Left: 85 / Right: 85 / Top: 85 / Bottom: 85 degrees;
IC ST7789V
Interface Type 8080-series Parallel MCU, 3/4-wires SPI, 18-bit RGB
Logic Power Supply Voltage 3.0V to 3.6V
Backlight 4 LEDs
Luminance 380 cd/m2
Touch Panel Optional RTP or CTP

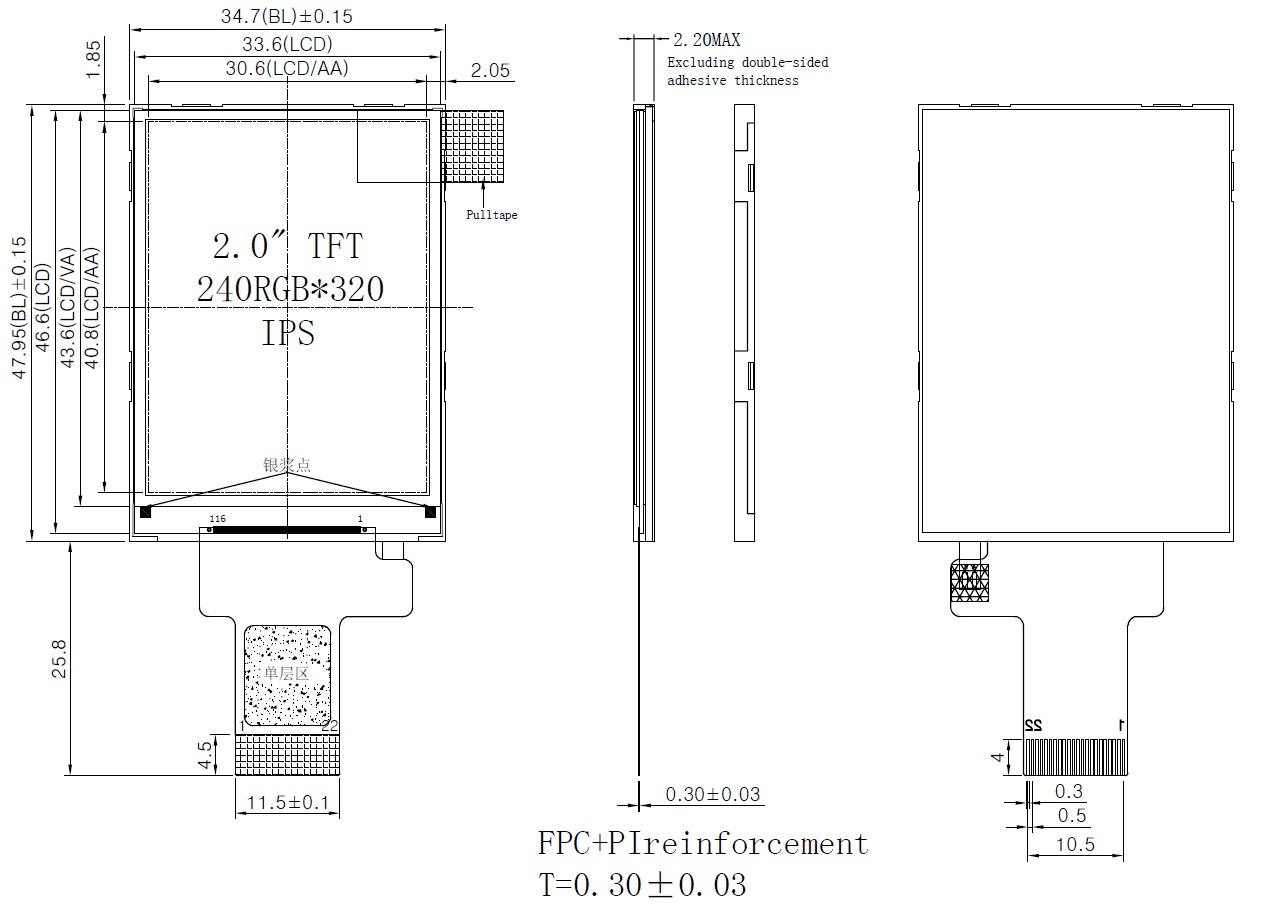

2.0'' TFT Display 240x320 with Smart Touch Screen, ST7789V Controller, MCU Interface datasheet

More for this 2.0” TFT LCD

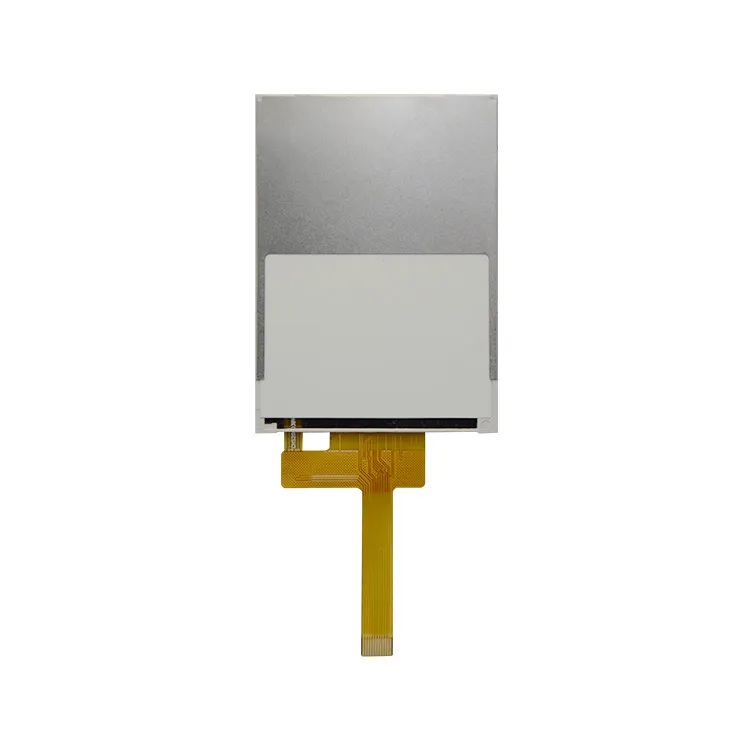

This 2.0 inch TFT LCD shield consists of a 2.0” IPS panel with a-Si TFTs, an ST7789V IC controller, MCU/SPI interface, an FPC cable connector, and 4 LEDs as backlight.



Display Effect

The IPS TFT display is the most expansive use of TFT LCDs comparing TN-TFT and VA-TFT. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS LCD Shield for iPhone 11.

Choose this 2.0” TFT LCD and experience high color production, fast response time, and a wide viewing angle. It is suitable for portable, handheld applications or devices requiring a mini color screen.

With its high resolution of 320×240 and a contrast ratio of 800:1, you can see sharp and clear images every time.

The 3ms response time eliminates ghosting and blurring, providing a smooth and seamless viewing experience.

The brightness of 380 Nits enhances the viewing experience and makes colors appear more vivid and sharper. Additionally, this can reduce eye strain during extended use, too.



Other Benefits

Thanks to the easy-to-use MCU interface and well-documented ST7789S IC controller, engineers can quickly develop and debug the program with Arduino or Raspberry Pi.

FPC cables are easily molded, folded, and shaped to meet the specific requirements of different devices. Manufacturers can easily integrate the display into their products.

The FPC cable saves space for small appliances, such as smartwatches, portable electronic products, etc.

You can add a capacitive or resistive touch screen (cheaper) to provide an interactive and intuitive way to control the device. So, your product has no additional buttons or a separate input device. That can give the product a seamless and clean look and enhances the user experience.



Your Requirement?

If you’re looking for a mini color display for portable or handheld applications, this 2.0’’ TFT LCD is an excellent choice.

And if you have specific requirements, our team is always here to help.

Contact us at sales@go2display.com for custom TFT display solutions.

Additional information

Display Type

TFT – IPS

Resolution

240×240

Interface

Parallel, MCU, SPI, RGB

Touch Screen

None
