2.4” TFT Display 320×240, IPS LCD Touchscreen, ST7789V Controller

Wide Viewing Angle: With IPS technology, this 2.4’’ TFT display offers a wide viewing angle of up to 160 degrees, ensuring images are still clear and vivid from any angle.

Sharp Image Clarity: The display boasts a high resolution of 320×240 and a contrast ratio of 800:1, providing sharp and clear images with excellent color representation.

Easy Integration: The ST7789V controller and an easy-to-use MCU interface make it simple for engineers to develop and integrate the display into products with the help of the FPC cable connector.

Touch Screen Option: The display can be paired with a resistive or touchscreen, providing an interactive and intuitive way to control the device without additional buttons or input devices.

SKU: GFC320240V1-2.4INTM Categories: , ,

Free Sample available all time!

  • Accept Custom Display Solution
  • Offer 12 Months Warranty
  • ISO 9001:2001 and RoHS Compliant for All Products

Description

This 2.4” TFT display is an IPS LCD Module with IPS panel / Active-Matrix TFTs / Resolution of 320×240 / Contrast ratio of 800:1 / 3ms Response Time  / Optional Touchscreen / MCU Interface / ST7789V Controller / FPC connector.

The high quality, low price product is always our long-term goal.



Technical Details

Download Product References Below
Product Datasheet: GFC320240V1-2.4INTM
Driver Datasheet:  ST7789V



Model / Series Name GFC320240V1-2.4INTM
Diagonal Dimension (Inches) 2.4
Dots WxH 320 x 240

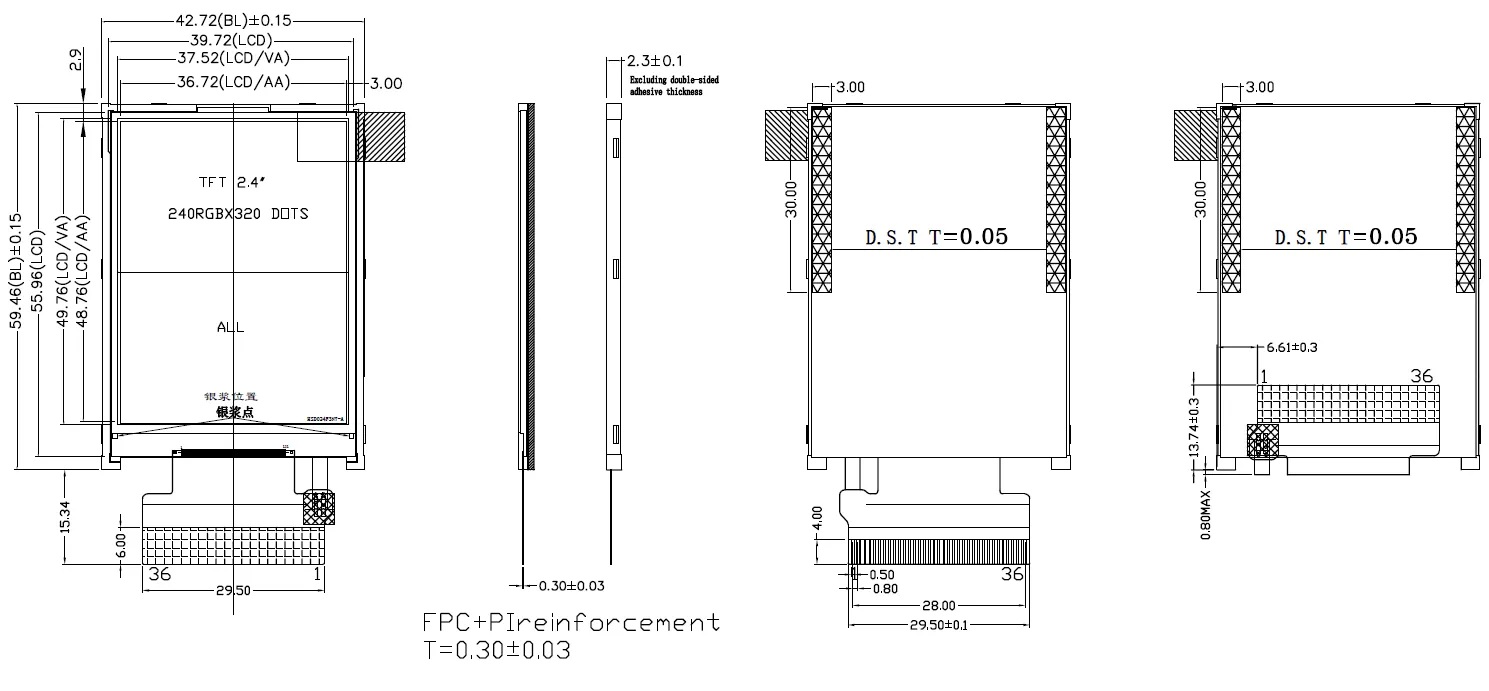

Module Size WxHxD (mm) 42.72 x 59.46 x 2.30
LCD Active Area WxHxD (mm) 36.72 x 48.96
Display Mode IPS / Transmissive
Viewing Angle Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;
IC ST7789V
Interface Type MCU Interface (SPI/RGB/MIPI Customizable)
Logic Power Supply Voltage 3.0V to 3.6V
Backlight 4 LEDs
Luminance 380 cd/m2
Touch Panel Optional RTP or CTP



More for this 2.4” TFT Display

This 2.4” TFT display consists of a 2.4” IPS panel with a-Si TFTs, an ST7789V controller, MCU interface, an FPC cable connector, and 4 LEDs as backlight.



Display Effect

Compared with TN-TFT and VA-TFT, IPS TFT display is the most widely used TFT LCD. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS screen for iPhone 11.

We are proud to offer this 2.4” TFT LCD display for various applications. With its IPS LCD and a-Si TFT technology, this display provides high-quality images with a fast response time and a wide viewing angle.

A wide viewing angle can keep images clear from any direction. And a resolution of 320×240 and a contrast ratio of 800:1 ensure that images appear sharp and clear with vivid colors.

Thanks to its fast 3ms response time, you’ll never see any ghosting or blurring while operating or watching videos.

The brightness of 380 Nits helps colors appear more vivid and sharper. Additional, this can also reduce eye strain, which is helpful during extended use.



Other Benefits

The ST7789V controller and MCU interface make it easy for engineers to develop a display program quickly.

The FPC cable connector allows for flexible integration into products, which is useful for small applications.

The display also offers the option to add a resistive or capacitive touchscreen, providing an interactive and intuitive way to control the device without additional buttons or input devices.

In short, the 2.4” TFT display is a high-quality and versatile solution for a wide range of applications, from wearable devices to handheld electronics.



Your Requirement?

If you’re looking for a mini color display for wearable, handheld, or portable applications, this 2.4” TFT display from Go2Display is an excellent choice.

This is just one of our famous TFT LCDs. In Go2Display, you can find more.

If none of these part numbers meet your requirements in any term, contact us(sales@go2display.com), who are willing to work with you. We also offer custom TFT display solutions.

Additional information

Display Type

TFT – IPS

Resolution

240×240

Interface

Parallel, MCU, SPI, RGB

Touch Screen

None
