2.8” TFT Display 320×240 with Touchscreen, SPI Interface, ST7789V2 Driver

Wide Viewing Angle: The IPS (In-Plane Switching) technology provides a wide viewing angle of 160 degrees, making it look great from any direction.

Sharp Image Clarity: The resolution of 320×240 and contrast of 800:1 allow us to see sharp and clear images.

Fast Response Time: With a response time of 3ms, this 2.8’’ TFT display can play fast-moving images without ghosting or blurring effects. So MP3 video players or digital cameras use for video playback.

Interactive Design: You can add a capacitive or resistive touch screen to simplify product design. That can enhance the user experience and provide a simple way to control without additional buttons or input devices.

Customizable Solution: Go2Display can provide custom TFT display solutions to meet your specific requirements.

SKU: GFC320240-2.8INTM Categories: , ,

Free Sample available all time!

  • Accept Custom Display Solution
  • Offer 12 Months Warranty
  • ISO 9001:2001 and RoHS Compliant for All Products

Description

This 2.8 inch TFT LCD is an IPS display Module with IPS panel / Active-Matrix TFTs / Resolution of 320×240 / Contrast ratio of 800:1 / 3ms Response Time  / Optional Touchscreen / SPI Interface / ST7789V2 Driver IC / FPC connector.

The high quality, low price product is always our long-term goal.



Technical Details

Download Product References Below
Product Datasheet: GFC320240-2.8INTM
Driver Datasheet:  ST7789V2



Model / Series Name GFC320240-2.8INTM
Diagonal Dimension (Inches) 2.8
Dots WxH 320 x 240

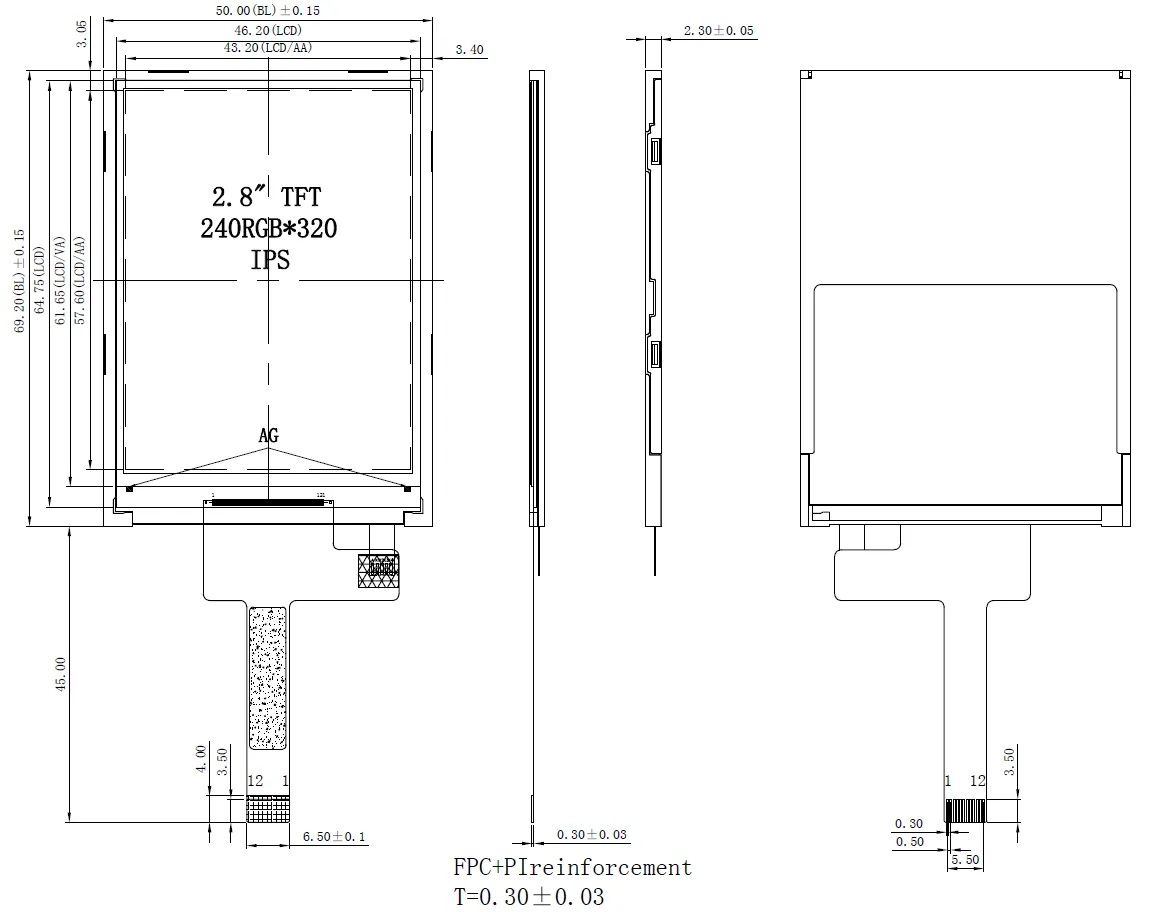

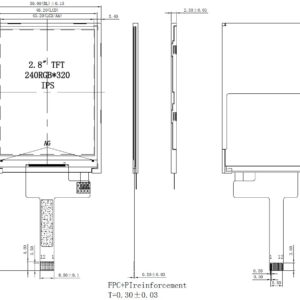

Module Size WxHxD (mm) 50.00 x 69.20 x 2.30
LCD Active Area WxHxD (mm) 43.20 x 57.60
Display Mode IPS / Transmissive
Viewing Angle Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;
IC ST7789V2
Interface Type SPI Interface (MCU/RGB/MIPI Customizable)
Logic Power Supply Voltage 3.0V to 3.6V
Backlight 4 LEDs
Luminance 380 cd/m2
Touch Panel Optional RTP or CTP



More for this 2.8 Inch TFT Display

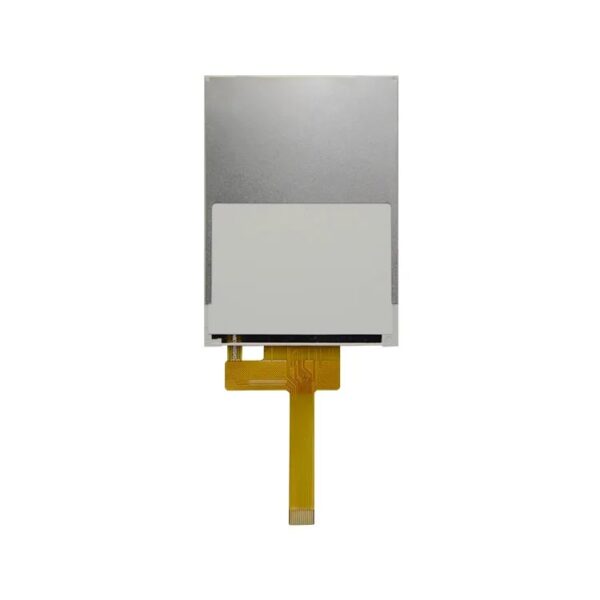

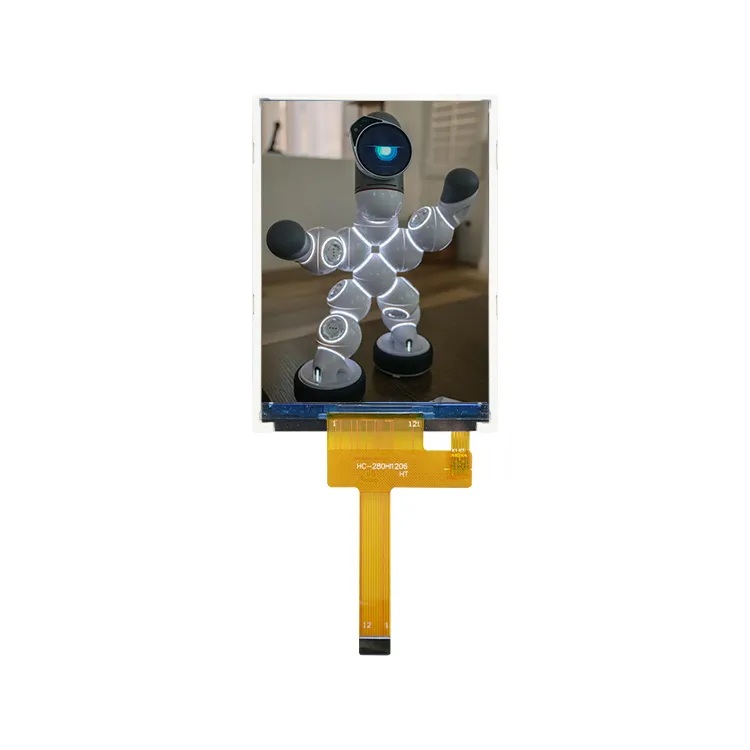

This 2.8 inch TFT display consists of a 2.8” IPS LCD with a-Si TFTs, an ST7789V2 IC driver, SPI interface, an FPC cable connector, and 4 LEDs as backlight.



Display Effect

The IPS TFT display is the most expansive use of TFT LCDs comparing TN-TFT and VA-TFT. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS LCD Shield for iPhone 11.

We are proud to offer this 2.8 inch TFT LCD display for various applications. Its IPS LCD and a-Si TFT technology provide high-quality images with fast response times and a wide 160-degree viewing angle.

Meanwhile, the 320×240 resolution and 800:1 contrast ratio result in clear and vivid images from any angle.

Thanks to its 3ms response time, we will never see ghosting or blurring when watching videos or using the display.

With 380 Nits of brightness, it offers a better viewing experience and makes colors appear more vivid and sharper.



Other Benefits

The ST7789V2 IC driver and SPI interface makes it easy for engineers to develop and debug software.

And the FPC cable connector saves space in small devices like handheld and portable devices. It helps factories integrate into products easily.

To enhance the user experience, you can add a capacitive or resistive touch screen. This provides a simple and intuitive way to control the device, giving your product a sleek, seamless look.



Your Requirement?

If you’re looking for a mini color display for portable or handheld applications, this 2.8 inch TFT display is an excellent choice.

And if you have specific requirements, our team is always here to help.

Contact us at sales@go2display.com for custom TFT display solutions.

Additional information

Display Type

TFT – IPS

Resolution

240×240

Interface

Parallel, MCU, SPI, RGB

Touch Screen

None
