3 Inch Round LCD Display

Round: This shape suits smart mirrors, car displays, industrial control systems, etc.

It comes with the following:

  • high displaying quality,
  • accurate color reproduction,
  • sunlight readable display (1000 nits),
  • high resolution (432 x 432),
  • wide viewing angles (160 degrees),
  • optional touch panel.

Wholesale Price: As a TFT LCD manufacturer, Go2Display can give you a factory price.

Free Sample available all time!

  • Accept Custom Display Solution
  • Offer 12 Months Warranty
  • ISO 9001:2001 and RoHS Compliant for All Products

Description

This 3 inch Round LCD display is a IPS display Module with active-matrix TFT technology  / 432×432 Resolution / Contrast ratio of 800:1 / Optional Cpacitive Touchscreen / SPI or 24-bit RGB Interface / HX8363 Driver IC / COG Package.

The high quality, low price product is always our long-term goal.



Technical Details

Download Product References Below
Product Datasheet: GFC432432-3INTM
Driver Datasheet: HX8363



Model / Series Name GFC432432-3INTM
Diagonal Dimension (Inches) 3.0
Dots WxH 432 x 432
Module Size WxHxD (mm) 84.20 x 89.20 x 6.38
LCD Active Area WxHxD (mm) 74.39 x 74.39
Display Mode IPS, Transmissive, Normal black
Display Colors 16.7M
Viewing Direction All
Contrast Ratio 800:1
IC HX8363 from Himax
Interface Type SPI/24-bit RGB
Backlight White LEDs
Luminance 1000 Nits
Touch Panel None or Optional CTP (Capacitive Touch Panel)
Operating Volatge 3.3V
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 85 °C

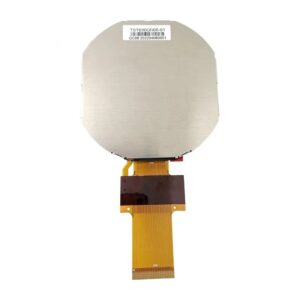

Details about this 3 Inch Round LCD Display



This 3-Inch Round LCD Display is a full-color TFT display, designed for applications that need a small, circular screen with precise color reproduction and wide viewing angles.



It has a high resolution (432 x 432) and a contrast ratio (800:1).  So, you can see sharp and clear graphics.

Furthermore,  it can show a wide range of colors (16.7 million), making images look more natural and vivid.

It uses IPS panel technology, giving it a wide viewing angle (160 degrees) and making it easy to see from any direction.



The HX8363 built-in IC from Himax makes sure that color management is stable and works well.

This display is easy to put into different devices because it has a standard SPI interface and COG package.



An optional capacitive touchscreen panel (CTP) supports multi-touch input and interaction, making it perfect for applications requiring a round touchscreen interface.



It is a sunlight-readable display with a brightness of 1000 nits, making it easy to see even under the sun and in some ambient light places.



This display can work in temperatures from -20 to 70 °C and withstand storage temperatures from -30 to 85 °C, making it a good choice for various uses under bad conditions.



Your Requirement?

This 3-inch round LCD screen offers the following:

  • High picture quality
  • Vivid color reproduction
  • High resolution
  • Wide viewing angles
  • Optional touch interaction
  • Small size

As a result, it is a great circular display solution for some uses, such as:

  • Industrial control systems
  • Medical equipment
  • Car Displays
  • Smart Mirrors
  • Even more

If the predefined specifications don’t meet your project requirements, we can create a custom TFT display solution for your unique needs.

Just email us at sales@go2display.com to talk about your project, and we’ll help you figure out your options.

Additional information

Display Type

TFT – IPS

Resolution

240×240

Interface

Parallel, MCU, SPI, RGB

Touch Screen

None
