5.5 inch LCD Display with HD 720p IPS Panel, TouchScreen, MIPI Interface

Wide Viewing Angle: The IPS panel provides a 160° viewing angle, both horizontally and vertically, making images remain clear and vivid from any angle.

Sharp Image Clarity: It is a 720p HD display, boasting a resolution of 1280×720, a contrast ratio of 800:1, and a brightness of 360 Nits. Therefore, we can see sharp and clear images.

Easy-to-Use: The MIPI interface and built-in ILI9881D controller make it suitable for mobile or portable devices. Meanwhile, thanks to the FPC cable connector, factories can easily integrate it into the product.

Touch Screen Option: You can select a resistive or capacitive touch screen to provide an interactive and intuitive way to control the device without additional buttons or input devices.

Custom TFT Solution: We provide custom TFT display solutions to meet your specific requirements, including size, shape, Interface, IC, FPC cable shape, etc.

Free Sample available all time!

  • Accept Custom Display Solution
  • Offer 12 Months Warranty
  • ISO 9001:2001 and RoHS Compliant for All Products

Description

This 5.5 inch LCD display is an LED-backlit TFT display Module with IPS panel / Active-Matrix TFTs / Resolution of 1280×720 / Contrast ratio of 800:1 / 3ms Response Time  / Optional Touchscreen / MIPI Interface / ILI9881D Controller / FPC connector.

The high quality, low price product is always our long-term goal.



Technical Details

Download Product References Below
Product Datasheet: GFC1280720-5.5INTM
Driver Datasheet: ILI9881D



Model / Series Name GFC1280720-5.5INTM
Diagonal Dimension (Inches) 5.5
Dots WxH 1280 x 720
Module Size WxHxD (mm) 71.00 x 129.66 x 1.65
LCD Active Area WxHxD (mm) 68.04 x 120.6
Display Mode IPS / Transmissive
Viewing Angle Left: 80 / Right: 80 / Top: 80 / Bottom: 80 degrees;
IC ILI9881D
Interface Type MIPI Interface (MCU/RGB/LVDS Customizable)
Logic Power Supply Voltage 3.0V to 3.6V
Backlight 14 LEDs
Luminance 360 cd/m2
Touch Panel Optional RTP or CTP



More for this 5.5 inch  LCD Display

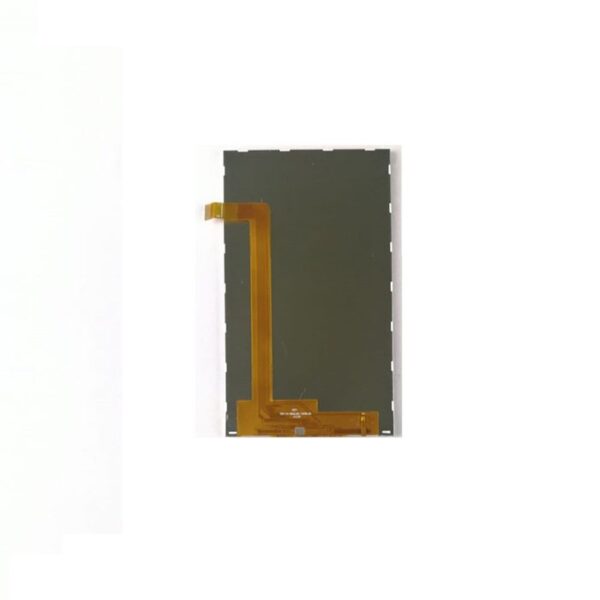

This 5.5 inch LCD display consists of a 5.5” IPS panel with a-Si TFTs, an ILI9881D IC controller, MIPI interface, an FPC cable connector, and 14 LEDs as backlight.



Display Effect

Compared with TN-TFT and VA-TFT, IPS TFT display is the most widely used TFT LCD. Because it has high color production, fast response time, and wide viewing angle. For example, Apple Inc. still used an IPS screen for iPhone 11.

With its IPS (In-Plane Switching) panel and active-matrix TFTs (Thin Film Transistors), the 5.5” LCD display offers vivid colors and wide viewing angles (160°), ensuring that images, videos, and graphics are clear from any angle.

The resolution of 1280×720 provides a 720p high definition, while the contrast ratio of 800:1 provides deep blacks and bright whites, ensuring that you can see sharp and clear content.

Furthermore, the display has a 3ms response time, making it ideal for fast-paced applications, such as gaming and video playback, where quick and smooth transitions are important.



Other Benefits

The display also features an optional touchscreen, making it an ideal solution for interactive applications, such as mobile devices, tablet PCs, and point-of-sale systems.

Our clients use it as a smartphone LCD screen replacement.

The MIPI (Mobile Industry Processor Interface) interface provides fast and reliable communication between the display and the host controller. The Ilitek ILI9881D controller is responsible for the display’s overall performance and ensures that the display runs smoothly and efficiently.

The FPC connector provides a secure and flexible connection between the display and the host controller, allowing you to integrate the display into your device easily.



Your Requirement?

Whether you’re building a consumer electronics product or an industrial LCD monitor, this 5.5 inch LCD display is a cheap solution for your needs.

Go2Display is ready to provide custom TFT display solutions to meet your specific requirements.

Contact us at sales@go2display.com who is always willing to work with you.

Additional information

Display Type

TFT – IPS

Diagonal Size (Inch)

5.5 inch

Resolution

240×240

Interface

MIPI

Touch Screen

Optional CTP or RTP
